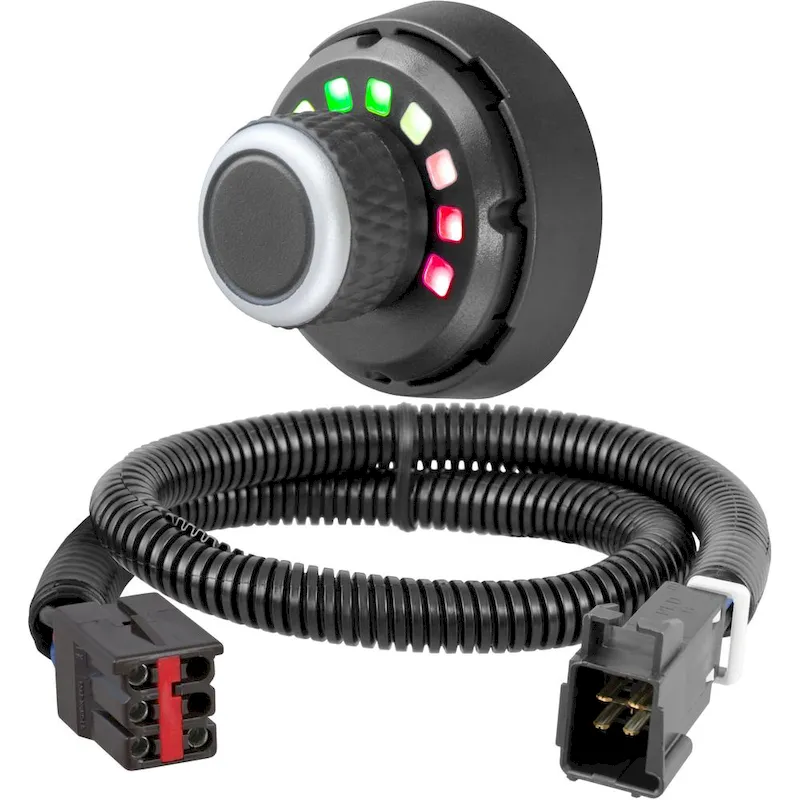

Curt Spectrum Electric Trailer Brake Control For 16-23 Toyota Tacoma

CURT 51170 Spectrum Original Equipment Style, Integrated Electric Trailer Brake Controller, Proportional (QTY 1)

Manufactured by: Curt

The CURT Spectrum trailer brake controller provides powerful brake operation while maintaining a clean, consistent OE look and feel on the dash of your vehicle It is comprised of a main module and a separate user interface This interface is a simple rotary knob with a push-button and ten tri-color LEDs to control and monitor all trailer brake activity.

It also features a triple-axis accelerometer for highly responsive, smooth stops on any grade The separated module and interface of the Spectrum brake controller allow it to integrate with the vehicle unlike any other The main module can be mounted behind the dash and completely out of sight.

The separate rotary knob provides a sleek, subtle interface that mounts on the dash of the vehicle wherever desired It features ten LEDs with three colors each (red, green and blue) to indicate trailer brake activity and power adjustment The rotary knob and integrated push-button allow for simple and effective operation of the control settings and manual adjustment.

The Spectrum trailer brake controller offers superior safety and helps protect the life of your vehicle and trailer with its advanced triple-axis accelerometer This integrated circuit detects the motion of the vehicle and trailer when making stops and applies the precise amount of brake power for maximum efficiency and effectiveness The three axes of the circuit also enable the brake control to compensate when going up or down a hill.

Like most CURT brake controllers, the Spectrum installs using one of our vehicle-specific quick plug harnesses It also has automated leveling and calibration capabilities to simplify and speed up the installation process The Spectrum trailer brake controller comes with mounting hardware for a complete installation..

Features:

• Controls all brake settings with a simple push-button rotary knob
• Clean, dash-mounted, OEM-style user interface with 10 tri-color LEDs
• Main module can be mounted out of sight
• Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
• Easily accessible manual override with the press of a button
• Features two installation options: drill mount or surface adhesive mount
• Automatic leveling and calibration eliminate setup requirements
• Plug-and-play install with vehicle-specific quick plug harness (sold separately)
• Operates 2-8 trailer brakes at a time (1-4 axles)
• Built-in reverse-polarity and short-circuit protection
• Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
• Tow vehicle ‘low voltage’ and trailer disconnect indicators
• Limited lifetime warranty

CURT 51455 Quick Plug Electric Trailer Brake Controller Wiring Harness (QTY 1)

Manufactured by: Curt

A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle’s factory brake controller socket The other end plugs into your CURT trailer brake controller.

Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation This particular brake controller harness fits certain years of the Toyota Tacoma and Tundra (see application info to verify fitment) CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation.

They’re also great for towing all types of trailers with electric brakes For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long It also features a slit loom sleeve to keep the wires protected against crushing and abrasions.

CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight..

Features:

• Allows a CURT trailer brake controller to be plugged into OEM socket
• Quick plug harness installs with plug-and-play convenience
• Wire colors match standard brake controller harnesses
• Includes 24″ of 12 gauge wire for flexible installation
• Slit-loom sleeve keeps wires contained and protected
