Description

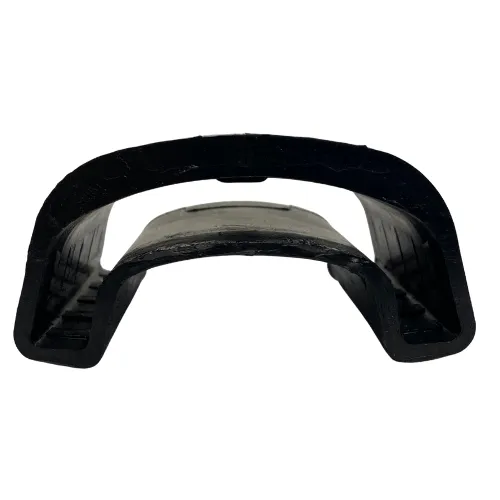

Automann’s cabin air spring is responsible for seating the cabin to the chassis of the vehicle. Designed to offer suspension while driving and superior dampening to improve ride comfortability. Installing a cabin air spring can also help improve vehicle handling and operation. Engineered to meet OEM specification and committed to Keeping Trucks Moving™
- High quality raw material and manufacturer expertise to guarantee long-lasting performance
- Maintains cabin height and stability while driving
- Improves safety and comfort while reducing fatigue for the driver
- Features OEM dimensioning for hassle-free assembly
- Manufactured to be environmentally friendly and longer lasting at an optimal weight
Product Specifications
- Type: Sleeve Type
- Brand: Automann Phoenix
- Load (Lbs) @ 80 PSI: 807
- Load (Lbs) @ 100 PSI: 1015
- Natural Frequency (CPM): 110
- Design Height (in): 5.50
- Top Plate Hole/Stud Qty: 1
- Top Plate Diameter: 2.99
- Top Plate C to C Diameter: N/A
- Bottom Plate Hole/Stud Qty: 1
- Bottom Plate Diameter: 2.90
- Bumper: No
- Min. Height: 2.40
- Max. Height: 8.50
- Max. Diameter: 5.40
Cross References: 67636, SC29-W087, 7087, W023587087, Wour website customer service, GYR 1S5-040, GYR1S5040, 1S5040, 1S5-040, 2218600
