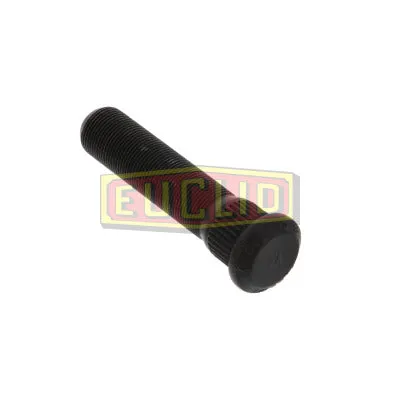

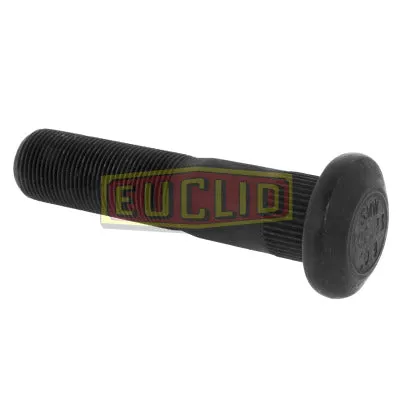

Description
Technical Information
- Body Diameter: 0.912″
- Grade: 10.9
- Body Length: 0.72″
- Head Style: Round
- Metric Thread Size: M22 X 1.5-6g
- Serration: Serrated
- Length from Under Head: 4 15/32″
- Type: Headed
- Thread: M22 x 1.5
- OEM: ConMet 102290, Meritor R0010219
- Thread Length: 2.57″
- Threads per Inch: 1.5 per mm
- Serration Diameter: 1.015″
- Thread Diameter: 22.0 mm
- Serration Length: 0.50″
- Head Thickness: 0.38″
- Wheel End Thread Direction: RH
Part Interchange: 2016141, 102290, 10005669, 131550, W708, 91165, 436
