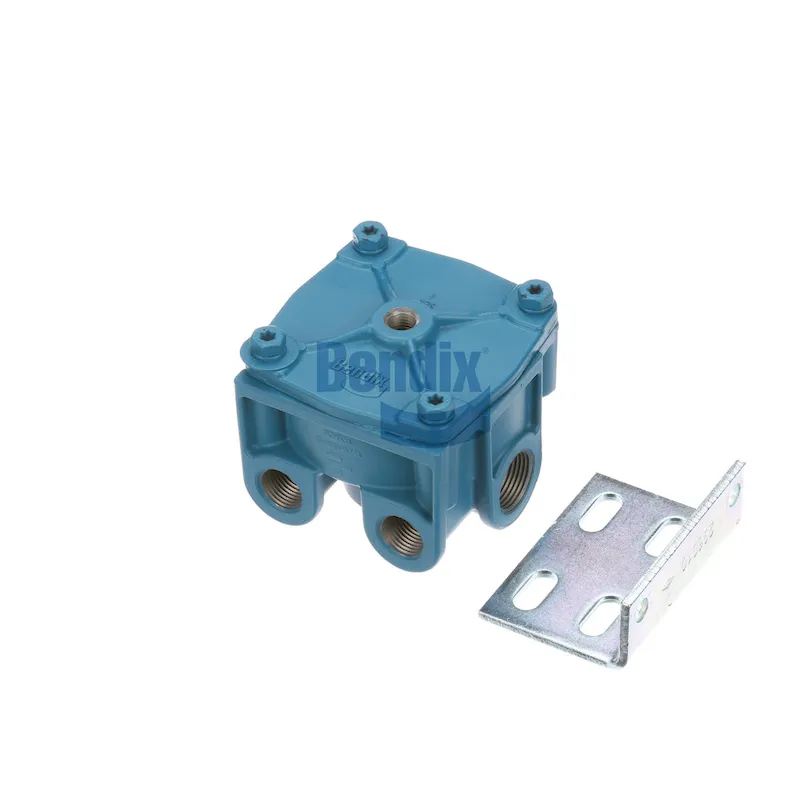

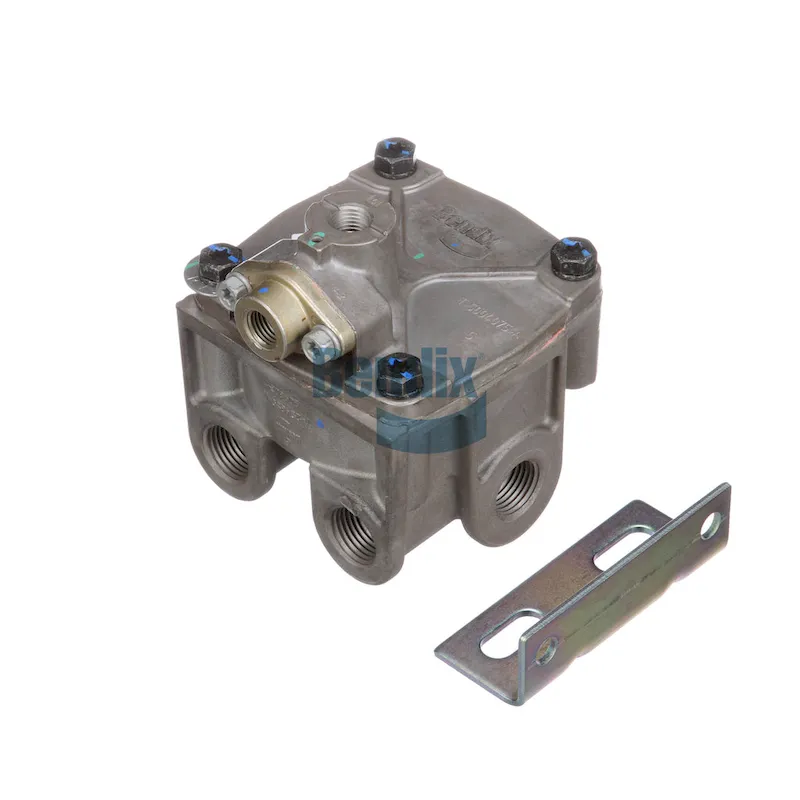

R-6 Air Brake Relay Valve OR279180X Bepco

Original price was: $27.39.Current price is: $8.22.

SKU: SK0106931-A Category: Air Brake Relay Valve Tag: Bepco

Description

Description

Product Specifications

Mounting: Standard Flange Mount – 0.41 in (x2)
Service Port Orientation (CW from Flange): 180°
Supply Port 1: 3/8-18 NPT
Supply Port 2: Closed Port
Delivery Port 1: 3/8-18 NPT
Delivery Port 2: 3/8-18 NPT
Delivery Port 3: 3/8-18 NPT (Plugged)
Delivery Port 1: 3/8-18 NPT (Plugged)
Exhaust Port: Dust Shield
Crack Pressure: 2.0 PSI
Maximum Operating Temperature: 200 °F (93 °C)
Minimum Operating Pressure: -40 °F (-40 °C)

Cross References:279952, 279180, 279180X, 279730, 279730X, 279952R, D2X2654, M1567183, 7926000493, A103600, 279952B1, SA147, 936001005, 9006449, 177141, 034021
