Description
Technical Information
- Kit Type: Mega Plus
- FMSI: 4717
- Bushing Type: No Anchor Pin Bushing
- Brake Diameter: 15.00″
- OE Mfg.: Eaton
- Parent Description: ES Reduced Envelope Drive Axle Brake
- Application: Drive Axle
- Replaces: Dayton/Batco 08104330, Eaton 815626, Haldex CQ66948, Sirco ES4, Leland K358, Meritor R507083
- Brake Width: 8.625 in.
- Brake Type: ES
- Notes: Eaton 15.00 in. X 8.625 in. ES REDUCED ENVELOPE Drive Axle Brake. For use with the following Brake Shoe: E-9036 (8.625.00 in.).

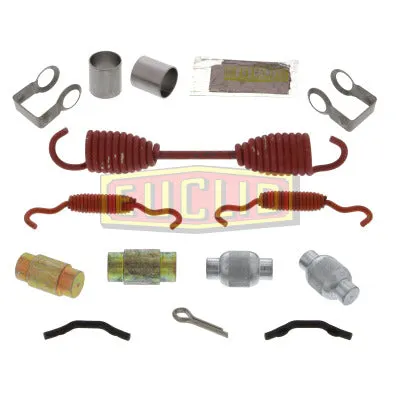

Product Contents
- (1) Brake Shoe – Return Spring
- (2) Camshaft Brake Roller
- (2) Brake Shoe – Retainer Spring
- (2) Air Brake – Retainer
Parts Interchange 100471710, MK115, 08104330, 815626, GBH4717E, OFS9039, ES4, SK4717E, HK4717E
This product can expose you to chemicals including lead and/or lead compounds & phthalates, including DEHP or DINP, which are known to the State of California to cause cancer & birth defects or other reproductive harm. For more information, go to
