Description
Technical Data/Attributes
- FMSI: 4670
- Brake Diameter: 12.25″
- Kit Type: Mega Plus
- Bushing Type: E-1893 SS with smooth ID
- OE Mfg: Eaton
- Replaces: Dayton/Batco 081093, Dayton/Batco 08109300, Trailmobile 383484, Dana/Spicer 44A, Haldex CQ67395, Dana/Spicer HK44XLS, Leland K154, Meritor KIT8004, Sirco LB3, Fruehauf MBCBK0024, Meritor R508004
- Brake Width: 7.50″
- Application: Trailer Axle
- Brake Type: Q
- Notes: Meritor 12.25″ Q Brake. For use with the following Brake Shoe: E-3491 (7.50 in)

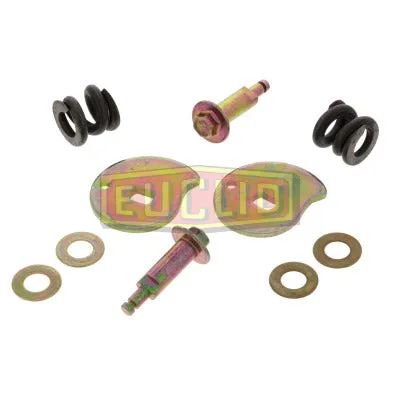

Product Contents
- (2) Brake Shoe – Retainer Spring
- (4) Air Brake – Brake Hardware
- (1) Brake Shoe – Return Spring
- (2) Air Brake – Brake Shoe Roller Pin
- (2) Air Brake – Bushing
- (2) Air Brake – Brake Shoe Roller Pin
- (2) Air Brake – Return Spring Retainer
- (2) Camshaft Brake Roller
- (1) Brake Shoe – Return Spring
Part Interchange: 100467010, MK45, 08109300, GBH1225Q, CQ67395, LB3, 44A, BSK1225Q, SK1225Q
