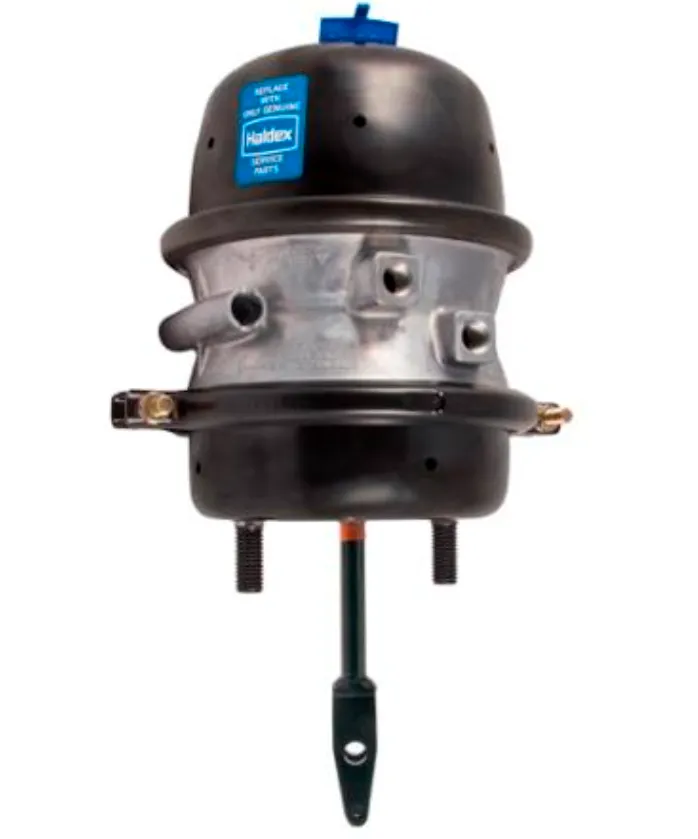

Name: Double Diaphragm Spring Brake - 3636 (Service Chamber Size), 3 in. Stroke Length GC3636 Haldex
SKU: SK0104912-A
Availability: InStock

Double Diaphragm Spring Brake – 3636 (Service Chamber Size), 3 in. Stroke Length GC3636 Haldex

Description

Superior Power Spring Technology
Advanced powder coating process
Resists corrosion and fatigue
Double O-ring Centerseal
Two o-rings for positive sealing and plastic bearings for long life
World Class Diaphragm
High quality rubber compound, resistant to heat and cold
Superior flexibility even at -40°F
Rugged Service Housing
9 gauge steel, powder coated
Orange Alert® Stroke Indicator
Self-piloting Dust Shield
Sizes to fit all drum brake applications

Product Specifications

Stroke Type: Extra Long
Available Stroke: 3.00″, 76mm
Length from mounting bracket to end of Spring Housing:: 10.7″, 272mm
Length of Piggyback: 8.0″, 203mm
Dimension at rolled Spring Housing flange: 9.1″, 231mm
Dimension at Service Clampband: 11.3″, 286mm
Pushrod Length from face of Service Housing: 9.00″
