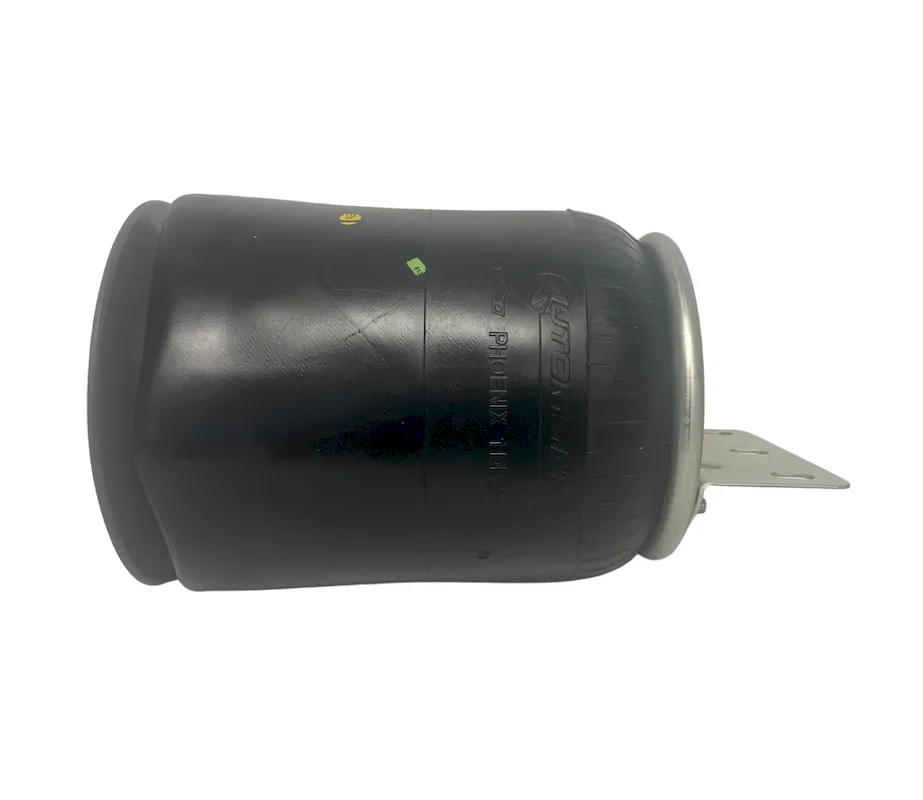

Air Spring Rolling Lobe AB1DK23J9644 Automann

Automann’s premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving

• Quality raw material and manufacturer expertise to guarantee performance
• Plastic Base allows for optimized weight and cost savings
• Features OEM dimensioning for hassle-free assembly
• Resistant to oil, lubricants, and averse weather conditions
• Manufactured to be environmentally friendly and longer lasting

Product Specifications

• Type: Rolling Lobe
• Load (Lbs) @ 80 PSI: 5760
• Load (Lbs) @ 100 PSI: 7200
• Natural Freq. (CPM): 71
• Design Height: 13.00
• Bottom Plate Type: Plastic
• Top Plate Hole/Stud Qty.: 2
• Top Plate Diameter: 9.00
• Top Plate C to C Diameter: 5.50″
• Bottom Plate Hole/Stud Qty: 1
• Bottom Plate Diameter: 10.28
• Bottom Plate C to C Diameter: N/A
• Bottom Part #: BS14552
• Bumper: Yes
• Bracket: N/A
• Min. Height: 7.30
• Max. Height: 21.40
• Max. Diameter: 12.6

Cross References: 9644, 64693, S23721, 9 10BP-16 P 569, W013589644, Wour website customer service, S-23721
