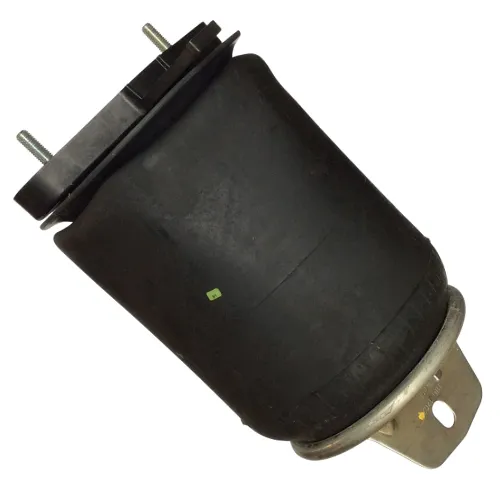

Name: Air Spring Cabin ABSZ70-7093 Automann
SKU: SK0106270-A
Availability: InStock

Description

Automann’s cabin air spring is responsible for seating the cabin to the chassis of the vehicle. Designed to offer suspension while driving and superior dampening to improve ride comfortability. Installing a cabin air spring can also help improve vehicle handling and operation. Engineered to meet OEM specification and committed to Keeping Trucks Moving™

High quality raw material and manufacturer expertise to guarantee long-lasting performance
Maintains cabin height and stability while driving
Improves safety and comfort while reducing fatigue for the driver
Features Push-to-Connect air connection fitting for easy installation
Manufactured to be environmentally friendly and longer lasting at an optimal weight

Product Specifications

Load (Lbs) @ 80 PSI: 904
Load (Lbs) @ 100 PSI: 1130
Design Height (In): 6.30
Top Plate Hole/Stud Qty: 1
Top Plate Dia. (A): 2.99
Bottom Plate Hole/Stud Qty: 1
Bottom Plate Dia.: 2.30
Min. Height: 4.70
Max. Height: 11.10
Max. Dia.: 6.00

Cross References: 75313, SC29B093, SC29-B093, 7093, W023587093, Wour website customer service, W027037093, Wour website customer service, W027037112, Wour website customer service, 1S5190, 1S5-190, 1410108005, 2006016, 20-06016, 2905900, 29-05900, 2906016, 29-06016
